현재위치 : 제품소개 》메인보드 SBC

TOTAL ARTICLE : 45, TOTAL PAGE : 1 / 5
전체보기 SBC 3.5" | SBC 5.25" | SBC 기타 |

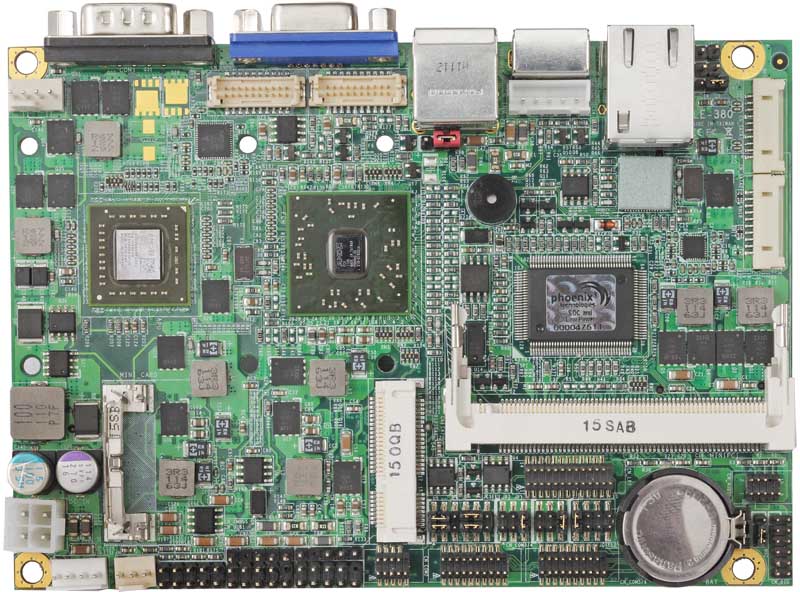

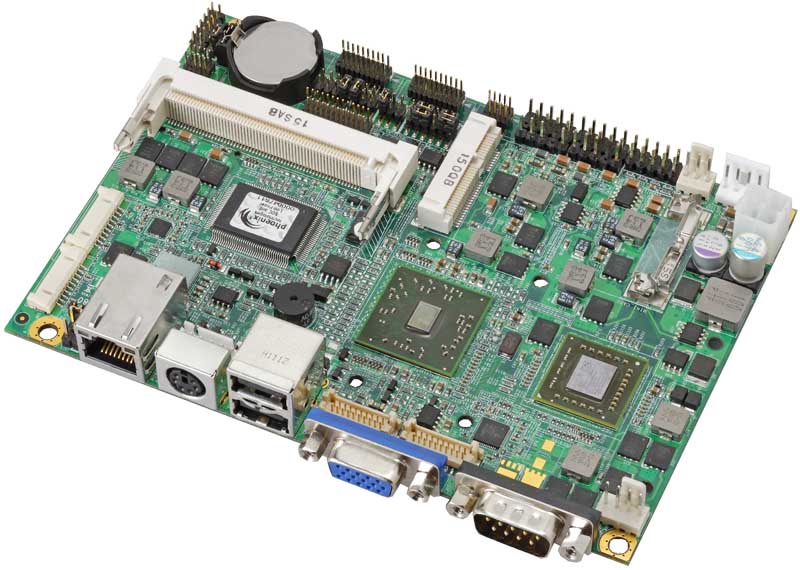

SBC 3.5" : LE-380 : 3.5" SBC with onboard AMD Dual-core T56N 1.65 GHz

Onboard AMD Dual-core T56N 1.65 GHz

AMD A55E FCH chipset, DDR3 1066/1333 MHz up to 4.0 GB,

Support VGA, LVDS, DVI, HD audio, Intel® Giga LAN, 2 x SATA, CFast socket

1 x RS232/422/485, 5 x RS232, 6 x USB2.0, LPT, 8-bit GPIO, SMBUS

Mini-PCIe & Mini-PCI sockets, Full range DC 5V ~ 24V input



Key Feature

  • CPU:  Onboard AMD Dual-core T56N 1.65 GHz

  • Memory: 1 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4.0GB

  • Chipset: AMD A55E FCH

  • Display Interface: Integrated AMD Radeon HD 6300 series graphic

  • LVDS interface: 18-bit single channel LVDS interface

  • DVI interface: onboard 20-pin DVI interface

  • LAN Interface: 1 x Intel® 82583V Giga LAN

  • Serial ATA: Support 2 x SATAII up to 300MB/s

  • SSD: 1 x CFast socket on solder side

  • Audio: Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 6 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, 1 x LPT, 1 x SMBUS

  • Extended interface: Mini-PCIe & Mini-PCI sockets

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • Power requirement : DC 5V ~ 24V input



  Specification


Form Factor

3.5" Single Board Computer

Processor

Onboard AMD Dual-core T56N 1.65 GHz

Memory

1 x DDR3 1066/1333 SO-DIMM up to 4.0 GB

Chipset

AMD A55E FCH

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

2 x Serial ATA II interface up to 300MB/s

 SSD Interface  1 x CFast socket on solder side

VGA Interface

Integrated AMD Radeon HD 6300 series graphic

LVDS Interface

18-bit single channel LVDS interface

 DVI Interface  onboard 20-pin DVI interface

Audio Interface


Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82583V Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

Mini-PCIe & Mini-PCI sockets

Internal I/O Port

1 x RS232/422/485 & 4 x RS232, 1 x GPIO, 1 x CDIN, 1 x SMBus,

1 x Audio, 1 x IrDA, 4 x USB2.0, 1 x LPT, 1 x DVI, 1 x LVDS

External I/O Port

1 x PS/2 keyboard/mouse, 1 x RJ45 LAN, 1 x VGA, 2 x USB2.0,

1 x RS232

Power Requirement

DC 5V ~ 24V input

Board Dimension

146mm x 101 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C







  Ordering Guide

LE-380

3.5" SBC Onboard AMD Dual-core T56N 1.65 GHz with VGA, DVI, 18-bit LVDS, Giga LAN, COM, USB, SATA, DC 5V ~ 24V input



 SBC 3.5" : LE-37I : Intel® Skylake(6th) H-Series Mobile Processor
3.5" Miniboard embedded Intel® Skylake Core™ H-Series processors,
Support for DDR4 SO-DIMM 2133 MHz up to 16 GB. HDMI, LVDS, Display port, DVI,
CRT, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232,
1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC,
DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37H : Intel® Apollo Lake Series Mobile Processor
3.5" Miniboard embedded Intel® Apollo Lake Series processors,
Support for DDR3L SO-DIMM 1866 MHz up to 8 GB. HDMI, LVDS, Display port, HD
audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232, 1 x
RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC,
DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37G : Intel® Skylake(6th) U-Series Mobile Processor
3.5" Miniboard embedded Intel® Skylake Core™ U-Series processors,
Support for DDR4 SO-DIMM 1866/2133 MHz up to 16 GB. HDMI, LVDS, Display port or
VGA, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232,
1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC,
DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37F : Intel® Braswell Series Mobile Processor
3.5" Miniboard embedded Intel® Braswell Series processors,
Support for DDR3L SO-DIMM 1600 MHz up to 8 GB. Optional Display port,
HDMI, LVDS, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0,
2 x USB2.0, 1 x RS232/422/485, 5 x RS232, 8-bit GPIO, 2 x Mini-PCIe sockets,
1 x SIM socket,1 x LPC,DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37E : Intel® Broadwell (5th) Haswell (4th) Core™ U-series Mobile Processor
3.5" Miniboard embedded Intel® Broadwell(5th)/Haswell(4th) Core™ Mobile U-series processors,
Support for DDR3L SO-DIMM 1333/1600 MHz up to 8 GB. Onboard Display port
HDMI, DVI, LVDS, HD audio, 1 or 2 Gigabit ethernet, 2 x SATA3, 2 x USB3.0,
4 x USB2.0, 1 x RS232/422/485, 5 x RS232,8-bit GPIO, 2 x Mini-PCIe sockets,
1 x SIM socket,1 x LPC,DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37D : Intel® Celeron® J1900,N2930 & Atom® E3845 Processor
3.5" SBC embedded Intel® Celeron™ J1900 / N2930 & Atom™ E3845 Mobile processor,
Support for DDR3L SO-DIMM 1066/1333 MHz up to 8 GB. Onboard Display port,
HDMI, CRT, 2 x LVDS, HD audio, 2 x Gigabit ethernet, 1 x SATAII, 1 x USB3.0,
5 x USB2.0, 1 x RS232/422/485, 5 x RS232, 8-bit GPIO, 2 x Mini-PCIe sockets,
,1 x SIM socket , 1 x CFast, Full range DC 6V ~ 27V input ...more
 SBC 3.5" : LE-37C : Support 4th Generation Intel®Core™ i7 / i5 / i3 and Celeron 2002E BGA1364 CPU
3.5" SBC support 4th generation Intel® Core™ i7 / i5 / i3 Mobile processor
Mobile Intel® QM87 Express chipset, DDR3L 1333/1600 MHz up to 8 GB,
Onboard VGA, LVDS, DVI, Display port, HD audio, 1 x Gigabit ethernet, 2 x SATAIII ,
1 x RS232/422/485, 1 x RS232, 2 x USB2.0, 4 x USB3.0, 8-bit GPIO, 1 x IrDA,
 2 x Mini-PCIe sockets , 1 x SIM socket , 1 x CFast , Full range DC 9V ~ 24V input ...more
 SBC 3.5" : LS-37B : Support 3rd Generation Intel®Core™ i7 / i5 / i3 Mobile processor
3.5" SBC support 3rd generation Intel® Core™ i7 / i5 / i3 Mobile processor
Mobile Intel® QM77 Express chipset, DDR3 1066/1333/1600 MHz up to 8 GB,
Onboard VGA, LVDS, DVI, HD audio, 1 x Gigabit ethernet, 2 x SATA ,
1 x RS232/422/485, 1 x RS232, 2 x USB2.0, 4 x USB3.0, 8-bit GPIO,
 2 x Mini-PCIe sockets , 1 x SIM socket , Full range DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37A : 3.5" Inches Embedded Mini board Intel® Celeron® Processor 807UE or 827E or 847E
3.5" SBC supports Intel® Sandy Bridge Processor 807UE/827E/847E,
Intel® HM65 Express chipset, DDR3 1066/1333 MHz up to 4.0 GB (LE-37ANB),
or 8GB (LE-37AC6 / LE-37ABU),Support CRT, DVI, LVDS, Gigabit LAN, USB2.0,
HD Audio, Serial ATAIII, PCIE mini card, LPC, mSATA, Full ranged 9V~24V(±5%) DC Input
Key Feature ...more
 SBC 3.5" : LE-380 : 3.5" SBC with onboard AMD Dual-core T56N 1.65 GHz
Onboard AMD Dual-core T56N 1.65 GHz
AMD A55E FCH chipset, DDR3 1066/1333 MHz up to 4.0 GB,
Support VGA, LVDS, DVI, HD audio, Intel® Giga LAN, 2 x SATA, CFast socket
1 x RS232/422/485, 5 x RS232, 6 x USB2.0, LPT, 8-bit GPIO, SMBUS
Mini-PCIe & Mini-PCI sockets, Full range DC 5V ~ 24V input ...more
