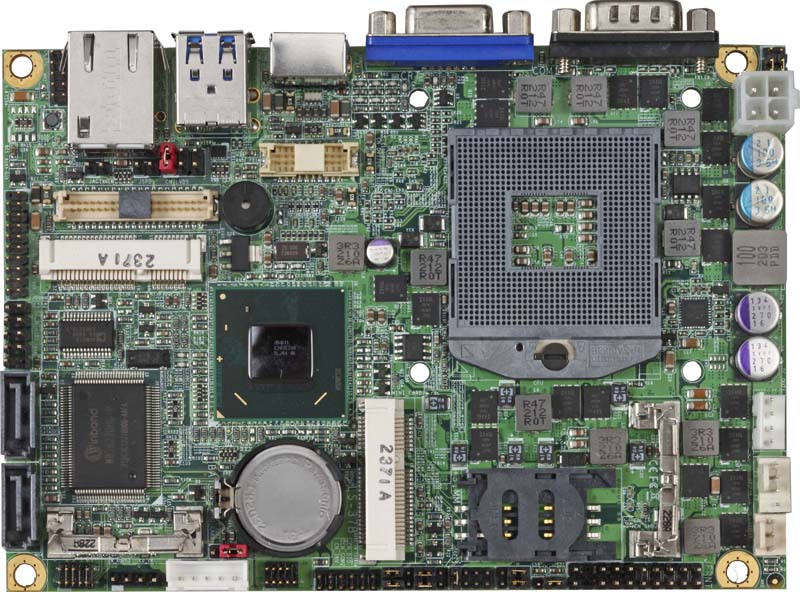

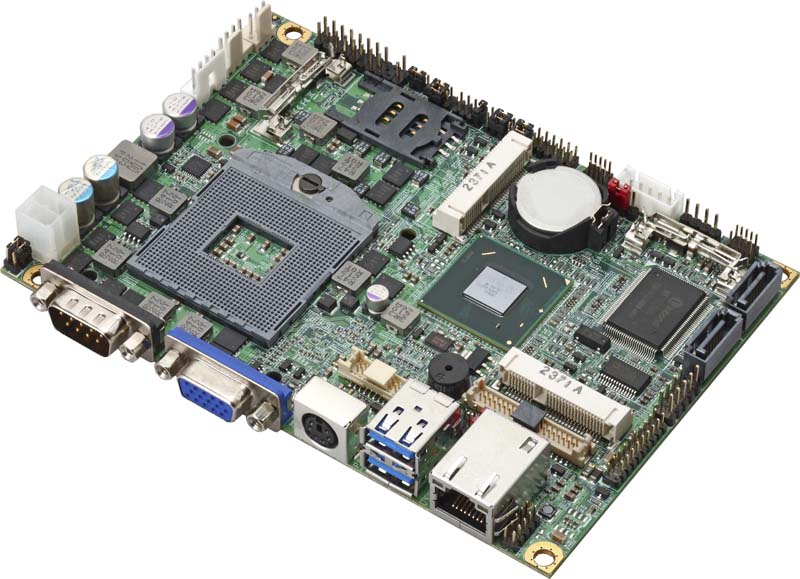

| SBC 3.5" : LS-37B : Support 3rd Generation Intel®Core™ i7 / i5 / i3 Mobile processor | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  3.5" SBC support 3rd generation Intel® Core™ i7 / i5 / i3 Mobile processor Mobile Intel® QM77 Express chipset, DDR3 1066/1333/1600 MHz up to 8 GB, Onboard VGA, LVDS, DVI, HD audio, 1 x Gigabit ethernet, 2 x SATA , 1 x RS232/422/485, 1 x RS232, 2 x USB2.0, 4 x USB3.0, 8-bit GPIO, 2 x Mini-PCIe sockets , 1 x SIM socket , Full range DC 9V ~ 24V input
CPU: Intel® 3rd generation Core™ i7/ i5/ i3/ Mobile in the rPGA988B socket (support Intel® 2nd generation Core™ i7/ i5/ i3/ Mobile in the rPGA988B socket) Memory: One DDR3 1006/1333/1600 MHz up to 8 GB Chipset: Mobile Intel® QM77 Express chipset Integrated Graphics: Intel® Core™ integrated HD Graphics 4000 Technology VGA Interface: Onboard DSUB15 connector for VGA interface LVDS interface: onboard 24-bit dual channel LVDS interface DVI interface: onboard DVI interface LAN Interface: 1 x Intel® 82579LM Giga LAN(Support iAMT8.0). Serial ATA: Support 2 x serial ATAIII Audio: Realtek ALC888 High Definition Audio. I/O ports: 1 x RS232 and 1 x RS232/422/485 Serial Ports, 2 x USB2.0 ports, 4 x USB3.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.
Extended interface: 2 x Mini-PCIe sockets, 1 x SIM socket . GPIO interface: Onboard programmable 8-bit Digital I/O interface. Power requirement : DC 9 ~ 24V input Form Factor 3.5" Single Board Computer Processor 3rd and 2nd generation Intel® Core™ i7 / i5 / i3 Mobile processor
Package Type: rPGA988B Memory 1 x DDR3 1066/1333/1600 SO-DIMM up to 8 GB Non-ECC, unbuffered memory supported only Chipset Mobile Intel® QM77 Express chipset Integrated Graphics Intel® Core™ integrated HD Graphics 4000 Technology Real Time Clock Chipset integrated RTC with onboard lithium battery Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s Power Management ACPI 3.0 compliant Serial ATA Interface 2 x SATAlll interface up to 600MB/s. VGA Interface Onboard DSUB15 connector for VGA interface. LVDS Interface Onboard 24-bit dual channel LVDS interface Audio Interface LAN Interface 1 x Intel® 82579LM Gigabit Ethernet Controller(Support iAMT8.0). GPIO Interface Onboard programmable 8-bit digital I/O interface Extended Interface 2 x Mini-PCIe sockets, 1 x SIM socket. Internal I/O Port 1 x RS232/422/485, 1 x GPIO, 1 x CDIN, 1 x SMBus, 1 xFront panel Audio, 1 x IrDA, 2 x USB2.0 , 2 x USB3.0 ports,
2 x Serial ATAIII,1 x CDIN,1 x SIM socket External I/O Port 1 x PS/2 keyboard/mouse, 1 x RJ45 LAN, 1 x VGA, 2 x USB3.0, 1 x RS232 Port Power Requirement DC 9 ~ 24V input Board Dimension 146 mm x 101 mm (L x W) Temperature Operating within 0 ~ 60°C Storage within -20 ~ 85°C LS-37B Intel PGA988B+ QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0, USB3.0, HD Audio, SATAIII, SMBUS, SIM, GPIO, PCI Express mini card. LS-37BS Intel PGA988B+ QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0, USB3.0, HD Audio, SATAIII, SMBUS, SIM, GPIO, PCI Express mini card, mSATA. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
|
| |||||
