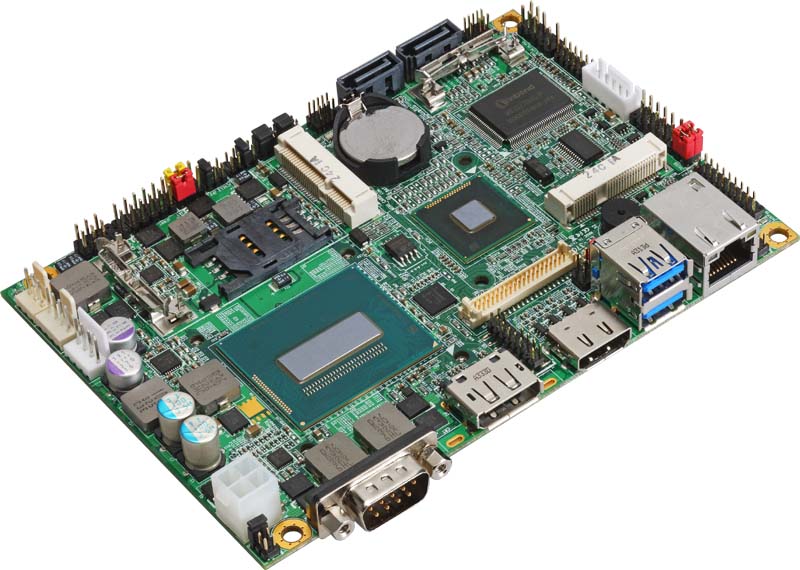

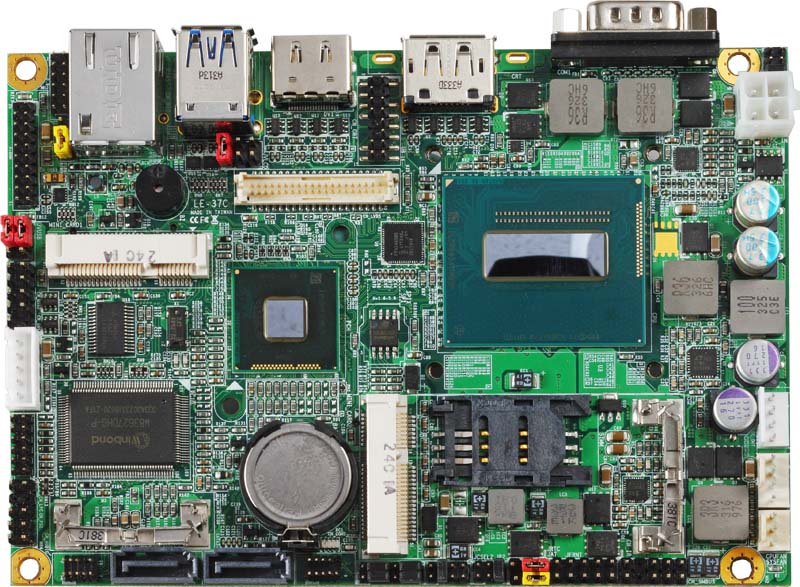

SBC 3.5" : LE-37C : Support 4th Generation Intel®Core™ i7 / i5 / i3 and Celeron 2002E BGA1364 CPU

3.5" SBC support 4th generation Intel® Core™ i7 / i5 / i3 Mobile processor

Mobile Intel® QM87 Express chipset, DDR3L 1333/1600 MHz up to 8 GB,

Onboard VGA, LVDS, DVI, Display port, HD audio, 1 x Gigabit ethernet, 2 x SATAIII ,

1 x RS232/422/485, 1 x RS232, 2 x USB2.0, 4 x USB3.0, 8-bit GPIO, 1 x IrDA,

 2 x Mini-PCIe sockets , 1 x SIM socket , 1 x CFast , Full range DC 9V ~ 24V input



Key Feature



  • CPU: Intel® 4th generation Core™ i7/ i5/ i3, Celeron® 2002E Mobile in the FCBGA1364 socket

  • Memory: One DDR3L SO-DIMM 1333/1600 MHz up to 8 GB

  • Chipset: Intel® QM87 Express chipset

  • Integrated Graphics: Intel® Core™ integrated HD Graphics 4600 Technology

  • Display port interface: Onboard Display port connector

  • DVI interface: Onboard DVI connector

  • LVDS interface: Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

  • Display port interface: Onboard Display port connector

  • LAN Interface: 1 x Intel® I217-LM Gigabit LAN  (Support iAMT9.0)

  • Serial ATA: 2 x serial ATA3 interface with 600MB/s transfer rate (Only for SATA3)

  • Audio: Realtek ALC888 High Definition Audio

  • I/O Ports: : 1 x RS232 and 1 x RS232/422/485 Serial Ports, 2 x USB2.0 ports,  4 x USB3.0 ports, 1x Display Port,  1 x  DVI, 1 x  LVDS, 1 x  CRT, 1 x  LAN, 1 x  IrDA,  1 x  SMBUS, 1 x PS/2 keyboard and mouse ports.

  • Extended interface:  Two PCIE Mini card slots, 1 x CFast Card socket , one SIM socket. (Optional support mSATA(SATAIII) for Mini_Card1)

  • GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface

  • Power Requirement: 9~24V 4-pin full range DC Input.



  Specification


Form Factor

3.5" Single Board Computer

Processor

4 th Generation Intel® Core™ i7/ i5/ i3, Celeron® 2002E Mobile Processor.

Package Type:  FCBGA1364

Memory

1 x DDR3L SO-DIMM 1333/1600 MHz up to 8GB.Support Non-ECC, only unbuffered memory.

Chipset

Intel® DH82QM87 PCH

Integrated Graphics

Intel® Core™ integrated HD Graphics 4600 Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 4.0 compliant

Serial ATA Interface

2 x serial ATA3 interface with 600MB/s transfer rate (Only for SATA3)

 Display Interface

Intel® 4th Generation Core mobile processor integrated HD Graphics 4600

1 x CRT (Onboard 2x8 pin-header)

1 x DVI (Rear I/O HDMI connector)

1 x DisplayPort (Rear I/O Port)

1 x LVDS (Onboard 24-bit dual channel connector with +3.3/+5/+12V supply)



LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

Audio Interface


Realtek ALC888 HD Audio

LAN Interface

1 x Intel® I217-LM Gigabit LAN (Support iAMT9.0)

GPIO Interface

Onboard programmable 12 pin-header, 8-bit Digital I/O interface

Extended Interface

Two PCIE Mini card slots, 1 x CFast Card socket , one SIM socket. (Optional support mSATA(SATAIII) for Mini_Card1)

Internal I/O Port

1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 2 x USB3.0, 2 x USB2.0, 1 x IrDA, 1 x CRT, 1 x LPC,1 x LVDS, 1 x LCD inverter, 2 x Serial ATA3 , 1 x DC-Out, 1 x PS/2, 1 x CFAST and 1 x Front panel Audio

External I/O Port

1 x LAN, 1 x DVI, 1x DisplayPort, 2 x USB3.0 and 1 x RS232

Audio Interface

Realtek ALC888 High Definition Audio.

Power Requirement

9~24V 4-pin full range DC Input.

Board Dimension

146mm x 101mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C







  Ordering Guide

LE-37C17L

i7-4700EQ Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.

LE-37C17P

Celeron 2002E Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.

LE-37C17Q

i5-4402E Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.

LE-37C17R

i3-4102E Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.



 SBC 3.5" : LE-37I : Intel® Skylake(6th) H-Series Mobile Processor
3.5" Miniboard embedded Intel® Skylake Core™ H-Series processors,
Support for DDR4 SO-DIMM 2133 MHz up to 16 GB. HDMI, LVDS, Display port, DVI,
CRT, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232,
1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC,
DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37H : Intel® Apollo Lake Series Mobile Processor
3.5" Miniboard embedded Intel® Apollo Lake Series processors,
Support for DDR3L SO-DIMM 1866 MHz up to 8 GB. HDMI, LVDS, Display port, HD
audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232, 1 x
RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC,
DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37G : Intel® Skylake(6th) U-Series Mobile Processor
3.5" Miniboard embedded Intel® Skylake Core™ U-Series processors,
Support for DDR4 SO-DIMM 1866/2133 MHz up to 16 GB. HDMI, LVDS, Display port or
VGA, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232,
1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC,
DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37F : Intel® Braswell Series Mobile Processor
3.5" Miniboard embedded Intel® Braswell Series processors,
Support for DDR3L SO-DIMM 1600 MHz up to 8 GB. Optional Display port,
HDMI, LVDS, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0,
2 x USB2.0, 1 x RS232/422/485, 5 x RS232, 8-bit GPIO, 2 x Mini-PCIe sockets,
1 x SIM socket,1 x LPC,DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37E : Intel® Broadwell (5th) Haswell (4th) Core™ U-series Mobile Processor
3.5" Miniboard embedded Intel® Broadwell(5th)/Haswell(4th) Core™ Mobile U-series processors,
Support for DDR3L SO-DIMM 1333/1600 MHz up to 8 GB. Onboard Display port
HDMI, DVI, LVDS, HD audio, 1 or 2 Gigabit ethernet, 2 x SATA3, 2 x USB3.0,
4 x USB2.0, 1 x RS232/422/485, 5 x RS232,8-bit GPIO, 2 x Mini-PCIe sockets,
1 x SIM socket,1 x LPC,DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37D : Intel® Celeron® J1900,N2930 & Atom® E3845 Processor
3.5" SBC embedded Intel® Celeron™ J1900 / N2930 & Atom™ E3845 Mobile processor,
Support for DDR3L SO-DIMM 1066/1333 MHz up to 8 GB. Onboard Display port,
HDMI, CRT, 2 x LVDS, HD audio, 2 x Gigabit ethernet, 1 x SATAII, 1 x USB3.0,
5 x USB2.0, 1 x RS232/422/485, 5 x RS232, 8-bit GPIO, 2 x Mini-PCIe sockets,
,1 x SIM socket , 1 x CFast, Full range DC 6V ~ 27V input ...more
 SBC 3.5" : LE-37C : Support 4th Generation Intel®Core™ i7 / i5 / i3 and Celeron 2002E BGA1364 CPU
3.5" SBC support 4th generation Intel® Core™ i7 / i5 / i3 Mobile processor
Mobile Intel® QM87 Express chipset, DDR3L 1333/1600 MHz up to 8 GB,
Onboard VGA, LVDS, DVI, Display port, HD audio, 1 x Gigabit ethernet, 2 x SATAIII ,
1 x RS232/422/485, 1 x RS232, 2 x USB2.0, 4 x USB3.0, 8-bit GPIO, 1 x IrDA,
 2 x Mini-PCIe sockets , 1 x SIM socket , 1 x CFast , Full range DC 9V ~ 24V input ...more
 SBC 3.5" : LS-37B : Support 3rd Generation Intel®Core™ i7 / i5 / i3 Mobile processor
3.5" SBC support 3rd generation Intel® Core™ i7 / i5 / i3 Mobile processor
Mobile Intel® QM77 Express chipset, DDR3 1066/1333/1600 MHz up to 8 GB,
Onboard VGA, LVDS, DVI, HD audio, 1 x Gigabit ethernet, 2 x SATA ,
1 x RS232/422/485, 1 x RS232, 2 x USB2.0, 4 x USB3.0, 8-bit GPIO,
 2 x Mini-PCIe sockets , 1 x SIM socket , Full range DC 9V ~ 24V input ...more
 SBC 3.5" : LE-37A : 3.5" Inches Embedded Mini board Intel® Celeron® Processor 807UE or 827E or 847E
3.5" SBC supports Intel® Sandy Bridge Processor 807UE/827E/847E,
Intel® HM65 Express chipset, DDR3 1066/1333 MHz up to 4.0 GB (LE-37ANB),
or 8GB (LE-37AC6 / LE-37ABU),Support CRT, DVI, LVDS, Gigabit LAN, USB2.0,
HD Audio, Serial ATAIII, PCIE mini card, LPC, mSATA, Full ranged 9V~24V(±5%) DC Input
Key Feature ...more
 SBC 3.5" : LE-380 : 3.5" SBC with onboard AMD Dual-core T56N 1.65 GHz
Onboard AMD Dual-core T56N 1.65 GHz
AMD A55E FCH chipset, DDR3 1066/1333 MHz up to 4.0 GB,
Support VGA, LVDS, DVI, HD audio, Intel® Giga LAN, 2 x SATA, CFast socket
1 x RS232/422/485, 5 x RS232, 6 x USB2.0, LPT, 8-bit GPIO, SMBUS
Mini-PCIe & Mini-PCI sockets, Full range DC 5V ~ 24V input ...more
