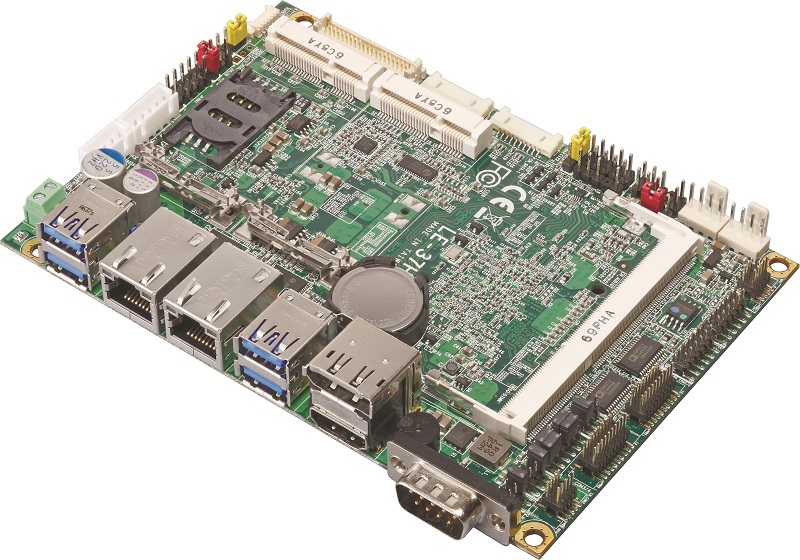

SBC 3.5" : LE-37H : Intel® Apollo Lake Series Mobile Processor

3.5" Miniboard embedded Intel® Apollo Lake Series processors, Support for DDR3L SO-DIMM 1866 MHz up to 8 GB. HDMI, LVDS, Display port, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232, 1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC, DC 9V ~ 24V input

Key Feature

CPU: Intel® Apollo Lake series Processor N3350 / N4200, FCBGA1296 package.
Memory: One DDR3L (support 1.35V) 1866 SO-DIMM up to 8GB
Integrated Graphics: Intel® integrated HD Graphics.
Display port interface: Onboard Display port connector
HDMI interface: Onboard HDMI connector.
LVDS interface: Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply.
LAN Interface: 2 x Intel® I210-AT Gigabit LAN
Serial ATA: Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, support RAID 0,1.
Audio: Realtek ALC262 HD Audio.
Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 4 x USB 2.0, 2 x SATA3, 1 x DC Out
External I/O Port: 1 x RS232, 1 x HDMI port , 2 x LAN, 4 x USB 3.0, 1 x Display port (optional)
Extended interface: Two PCIE Mini card slots (Only MINI CARD1 support mSATA), one SIM socket.
GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.
Power Requirement: DC Input 9~24V.

  Specification

Form Factor	3.5 inch miniboard
Processor	Intel® Apollo Lake series Processor N3350 / N4200, FCBGA1296 package.
Memory	1 x DDR3L 1866 SO-DIMM up to 8GB. Support Non-ECC.
Integrated Graphics	Intel® integrated HD Graphics
Real Time Clock	Chipset integrated RTC with onboard lithium battery
Watchdog Timer	Generates a system reset with internal timer for 1min/s ~ 255min/s
Serial ATA Interface	Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, support RAID 0,1.
Display Interface	Intel® HD Graphics Technology 1 x HDMI (Rear I/O HDMI connector) 1 x Display Port (Rear I/O Port) (Optional) 1 x LVDS (One onboard 24-bit dual channel connector with +3.3/+5/+12V supply)
LVDS Interface	One onboard 18/24-bit dual channel LVDS connector with +3.3/+5/+12V supply
Audio Interface	Realtek ALC262 HD Audio
LAN Interface	2 x Intel® I210-AT Gigabit Ethernet Controller
GPIO Interface	Onboard programmable 12 pin-header, 8-bit Digital I/O interface
Extended Interface	Two PCIE Mini card slots, one SIM socket. (Only Mini_Card1 can change to mSATA)
Internal I/O Port	1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 4 x USB 2.0 , 2 x SATA3 and 1 x DC Out
External I/O Port	1 x RS232, 1 x HDMI port, 2 x LAN, 4 x USB 3.0, 1 x Display port (optional)
Power Requirement	DC Input 9~24V
Board Dimension	146mm x 101mm (L x W)
Temperature	Operating within 0°C ~ 60°C (32°F ~ 140°F) Storage within -20 ~ 80°C (-4°F ~ 176°F)
Relative Humidity	10%~90%, non-condensing

Ordering Guide
LE-37HPN4S	Intel® Pentium® Core^™ Processor N4200 + Heat spreader, support HDMI, LVDS, DP
LE-37HTN4S	Intel® Pentium® Core^™ Processor N4200 + Heat spreader, support HDMI, LVDS, Header for VGA/ 2nd LVDS (Note)
LE-37HPN3S	Intel® Celeron® Core^™ Processor N3350 + Heat spreader, support HDMI, LVDS, DP
LE-37HTN3S	Intel® Celeron® Core^™ Processor N3350 + Heat spreader, support HDMI, LVDS, Header for VGA/ 2nd LVDS (Note)
LE-37HPN4F	Intel® Pentium® Core^™ Processor N4200 + Cooler Fan, support HDMI, LVDS, DP
LE-37HTN4F	Intel® Pentium® Core^™ Processor N4200 + Cooler Fan, support HDMI, LVDS, Header for VGA/ 2nd LVDS (Note)
LE-37HPN3F	Intel® Celeron® Core^™ Processor N3350 + Cooler Fan, support HDMI, LVDS, DP
LE-37HTN3F	Intel® Celeron® Core^™ Processor N3350 + Cooler Fan, support HDMI, LVDS, Header for VGA/ 2nd LVDS (Note)

		SBC 3.5" : LE-37I : Intel® Skylake(6th) H-Series Mobile Processor 3.5" Miniboard embedded Intel® Skylake Core™ H-Series processors, Support for DDR4 SO-DIMM 2133 MHz up to 16 GB. HDMI, LVDS, Display port, DVI, CRT, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232, 1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC, DC 9V ~ 24V input ...more
		SBC 3.5" : LE-37H : Intel® Apollo Lake Series Mobile Processor 3.5" Miniboard embedded Intel® Apollo Lake Series processors, Support for DDR3L SO-DIMM 1866 MHz up to 8 GB. HDMI, LVDS, Display port, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232, 1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC, DC 9V ~ 24V input ...more
		SBC 3.5" : LE-37G : Intel® Skylake(6th) U-Series Mobile Processor 3.5" Miniboard embedded Intel® Skylake Core™ U-Series processors, Support for DDR4 SO-DIMM 1866/2133 MHz up to 16 GB. HDMI, LVDS, Display port or VGA, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 4 x USB2.0, 5 x RS232, 1 x RS232/422/485, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket, 1 x LPC, DC 9V ~ 24V input ...more
		SBC 3.5" : LE-37F : Intel® Braswell Series Mobile Processor 3.5" Miniboard embedded Intel® Braswell Series processors, Support for DDR3L SO-DIMM 1600 MHz up to 8 GB. Optional Display port, HDMI, LVDS, HD audio, two Gigabit ethernet, 2 x SATA3, 4 x USB3.0, 2 x USB2.0, 1 x RS232/422/485, 5 x RS232, 8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket,1 x LPC,DC 9V ~ 24V input ...more
		SBC 3.5" : LE-37E : Intel® Broadwell (5th) Haswell (4th) Core™ U-series Mobile Processor 3.5" Miniboard embedded Intel® Broadwell(5th)/Haswell(4th) Core™ Mobile U-series processors, Support for DDR3L SO-DIMM 1333/1600 MHz up to 8 GB. Onboard Display port HDMI, DVI, LVDS, HD audio, 1 or 2 Gigabit ethernet, 2 x SATA3, 2 x USB3.0, 4 x USB2.0, 1 x RS232/422/485, 5 x RS232,8-bit GPIO, 2 x Mini-PCIe sockets, 1 x SIM socket,1 x LPC,DC 9V ~ 24V input ...more
		SBC 3.5" : LE-37D : Intel® Celeron® J1900,N2930 & Atom® E3845 Processor 3.5" SBC embedded Intel® Celeron™ J1900 / N2930 & Atom™ E3845 Mobile processor, Support for DDR3L SO-DIMM 1066/1333 MHz up to 8 GB. Onboard Display port, HDMI, CRT, 2 x LVDS, HD audio, 2 x Gigabit ethernet, 1 x SATAII, 1 x USB3.0, 5 x USB2.0, 1 x RS232/422/485, 5 x RS232, 8-bit GPIO, 2 x Mini-PCIe sockets, ,1 x SIM socket , 1 x CFast, Full range DC 6V ~ 27V input ...more
		SBC 3.5" : LE-37C : Support 4th Generation Intel®Core™ i7 / i5 / i3 and Celeron 2002E BGA1364 CPU 3.5" SBC support 4th generation Intel® Core™ i7 / i5 / i3 Mobile processor Mobile Intel® QM87 Express chipset, DDR3L 1333/1600 MHz up to 8 GB, Onboard VGA, LVDS, DVI, Display port, HD audio, 1 x Gigabit ethernet, 2 x SATAIII , 1 x RS232/422/485, 1 x RS232, 2 x USB2.0, 4 x USB3.0, 8-bit GPIO, 1 x IrDA, 2 x Mini-PCIe sockets , 1 x SIM socket , 1 x CFast , Full range DC 9V ~ 24V input ...more
		SBC 3.5" : LS-37B : Support 3rd Generation Intel®Core™ i7 / i5 / i3 Mobile processor 3.5" SBC support 3rd generation Intel® Core™ i7 / i5 / i3 Mobile processor Mobile Intel® QM77 Express chipset, DDR3 1066/1333/1600 MHz up to 8 GB, Onboard VGA, LVDS, DVI, HD audio, 1 x Gigabit ethernet, 2 x SATA , 1 x RS232/422/485, 1 x RS232, 2 x USB2.0, 4 x USB3.0, 8-bit GPIO, 2 x Mini-PCIe sockets , 1 x SIM socket , Full range DC 9V ~ 24V input ...more
		SBC 3.5" : LE-37A : 3.5" Inches Embedded Mini board Intel® Celeron® Processor 807UE or 827E or 847E 3.5" SBC supports Intel® Sandy Bridge Processor 807UE/827E/847E, Intel® HM65 Express chipset, DDR3 1066/1333 MHz up to 4.0 GB (LE-37ANB), or 8GB (LE-37AC6 / LE-37ABU),Support CRT, DVI, LVDS, Gigabit LAN, USB2.0, HD Audio, Serial ATAIII, PCIE mini card, LPC, mSATA, Full ranged 9V~24V(±5%) DC Input Key Feature ...more
		SBC 3.5" : LE-380 : 3.5" SBC with onboard AMD Dual-core T56N 1.65 GHz Onboard AMD Dual-core T56N 1.65 GHz AMD A55E FCH chipset, DDR3 1066/1333 MHz up to 4.0 GB, Support VGA, LVDS, DVI, HD audio, Intel® Giga LAN, 2 x SATA, CFast socket 1 x RS232/422/485, 5 x RS232, 6 x USB2.0, LPT, 8-bit GPIO, SMBUS Mini-PCIe & Mini-PCI sockets, Full range DC 5V ~ 24V input ...more
